Lēcta - 31.2" Inch outdoor information display
Lēcta is our new brand for complete e-Paper products - selected by us as best in class, supported and delivered from Europe
Slimline frame, ruggedised IK09 and
IP67 available, standalone wireless connected,
solar or battery powered e-Paper
display. Supplied with toughened
front glass, designed for easy

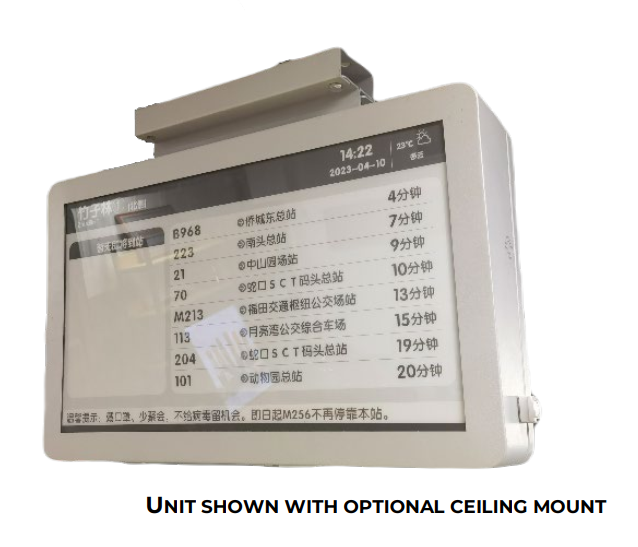

installation to an existing bus stop
pole or shelter ceiling.
Waterproof: The shell structure is designed
with waterproof grooves and waterproof maze
air inlet and outlet vents, which meet the IP66
protection level
Dust-proof design: The air inlet and outlet are
designed with a dust and water-proof filters
Anti-theft design: equipped with anti-theft
door lock, truly safe and anti-theft, the fixing
method is fixed by the back expansion screw
wall mount.
Modular design: fast customisation, flexible configuration, easy maintenance and
replacement of screen element.
Proven outdoor design: 6mm
tempered protective glass which
provides heat insulation and is
equipped with an ultraviolet filter. The
fully bonded screen has good visibility,
water resistance, high structural
strength, and effectively prolongs the
service life of the e-Paper display unit.
Key Display Module Features
Power-off Stability: Bistable technology, in the case of planned or unplanned power failure,
the image content remains
Ultra-low power consumption: Green and environmentally friendly, there is almost nopower consumption when the picture is not being updated. With 4G communication (optional), the power consumption of the whole machine remains ≤ 5W. When the optional Front Lights is turned on (software control)
consumption of the whole machine is ≤ 9W
Paper like display: Viewing quality with a paper-like look and viewing angle
Excellent visibility: Information is clearly visible in sunlight with industry leading contrast
Front Light: An optional front light is provided to improve nighttime
visibility
Specification | 31.2-inch screen |
Screen type | EPD black and white (RGB Option) |
Display area | 691.2（H）×388.8（V）mm |
resolution | 2560（H）×1440（V）pixels |
Grayscale scale | 16 Grey levels (RGB Option) |
Display Type | Reflective mode |
White Reflectance | 45% |
CPU | Quad-core, with a frequency of up to 2.0Ghz |
Memory and Storage | 5G RAM and 16G storage |
Network Connectivity | 100 Gigabit Ethernet interface/4G/5G/Wi-Fi |
Timed power on/off | Programmable on / off times |
Android motherboard interface device | Support USB camera, serial device module, 4 USB HOST, 3 RS232, 1 RS485, 1 UART, 5 AD1 standard SIM card interface, 1 antenna interface |
operating system | Google Android 11 system |
Language support | English or multiple mainstream languages |
System administration | File Manager |
System administration Power supply | The original Android system, open root permission, can be customized and developed |
Timed power on/off | |
Support OTA remote upgrade | |
12V DC (Solar Available) | |
Power consumption | ≤5W (with 12V input, front light off and sound off) |
Operating temperature | 0℃—+55℃ |
Storage temperature | -20—+70℃ |
humidity | ≤80%, non-condensing |
Mounting | VESA 200 or Custom |
Enclosure | IP65 – IP67 / IK options available |
