Lēcta - 31.2" Inch indoor information display
Lēcta is our new brand for complete e-Paper products - selected by us as best in class, supported and delivered from Europe
Power-off Stability: Bistable technology, in the case of planned
or unplanned power failure, the image content remains
Ultra-low power consumption: Green and environmentally
friendly, there is almost no power consumption when the
picture is not being updated. With 4G communication
(optional), the power consumption of the whole machine
remains ≤ 5W. When the optional Front Light is turned on
(software control) consumption of the whole machine is ≤ 9W
Paper like display: Viewing quality with a paper-like look and
viewing angle
Excellent visibility: Information is clearly visible in sunlight with
industry leading contrast
Front Light: An optional front light is provided to improve
nighttime visibility
Slim & Lightweight: 30mm thick overall and weighing only 4.5KG

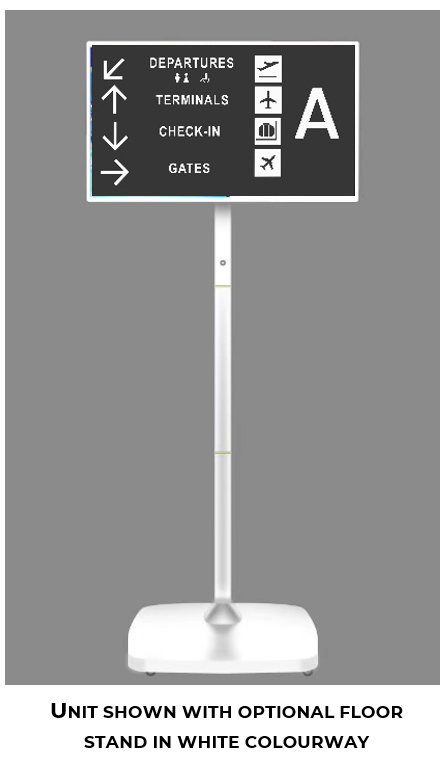

Standalone Operation: An optional stand with integrated battery is available to allow fully remote operation. Ideal for emergency or short-term operation.
Proven design for indoor
applications: Tempered glass cover lens, front light and EPD (electrophoretic display), the module has good visibility, moisture resistance, high structural strength, andeffectively prolongs the service life of the e-Paper display; Industrial-grade
design, can work normally at 0°C-50°C;
Networked platform
management: Display status management, power management, fault return management, etc. A variety of interfaces, which can be upgraded remotely, ensure
the accuracy of the information displayed by the unit and the stability of the system operation.
Multiple Colourways: Available in Black (Standard) or White or custom colours
Item | Specifications |
Display | 31.2inch EPD |
Screen type | Black and White |
Front Light | Turn on/off selection |
Active area | 691.2(H) x 388.8(V) mm |
Resolution | 2560(H) x 1440(V) dot (94PPI) |
Grayscale | Gray 16 |
Display mode | Reflective |
White Reflectivity | ≥42% |
Contrast Ratio | ≥15:1 |
CPU | Quad-core, 8Ghz |
Memory | 2G RAM and 16G storage |
Internet | 100 Gigabit Ethernet interface/4G/Wi-Fi |
Interface | HDMI x 1; WIFI external antenna interface x 1; 4G mobile network antenna interface x 1; Recover-key upgrade x 1; 1000M bandwidth RJ45 network port x 1; SD card x 1; USB interface x 2; OTG-USB x 1; headphone interface x 1; power socket DC12-3A x 1; POWER-KEY x 1 |
System | Android 7.1 |
Language |
English, or multiple mainstream languages |
System administration | File Manager |
Original Android system; root permission opening; customized | |
Timed power on/off | |
OTA remote upgrade | |
Power supply | DC 12V |
Power consumption | ≤5W (with 12V input, without front light or sound) |
Operating Temperature | 0℃ to +50℃ |
Storage temperature | -20℃ to +60℃ |
Humidity | ≤80%, non-condensing |
CPU | Quad-core, 8Ghz |

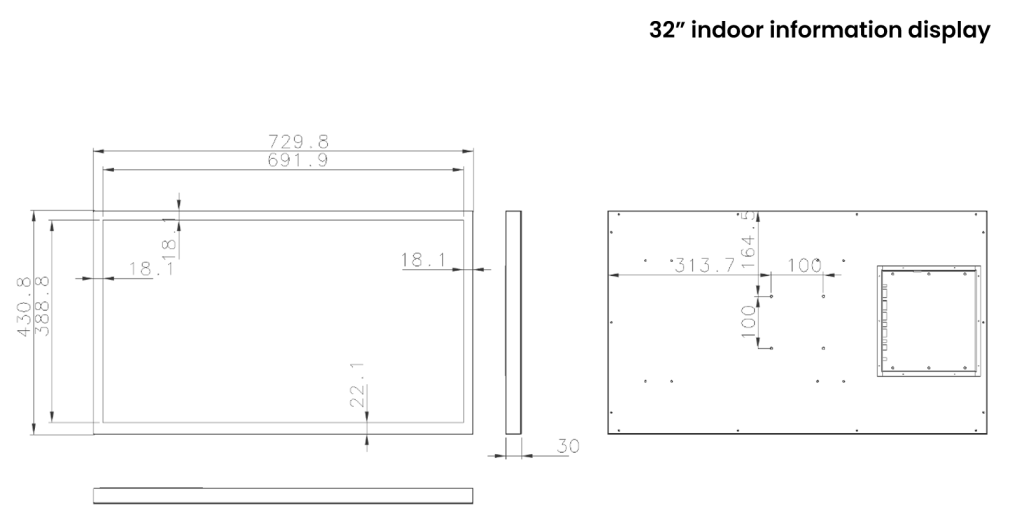

Overall Dimension | 729.8(H)x430.8(W)x30(T)mm |
Weight | Approximately 4.5KG |
Mounting | VESA 100 x 100 |
