Description

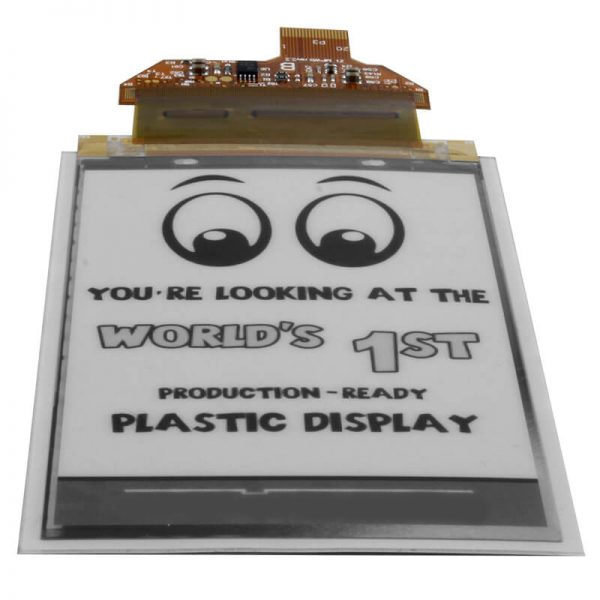

The 4.0” flexible display is an active-matrix EPD with Epson S1D13541 EPD controller and drivers supporting 400 x 240 pixels.
This display is particularly suitable for smart cards, wearables and labels.
4.0″ Flex Display: Active-matrix EPD with Epson S1D13541 controller, ideal for smart cards, wearables, and labels.
$50.00
Out of stock
4.0″ Flex Display: Active-matrix EPD with Epson S1D13541 controller, ideal for smart cards, wearables, and labels.
$50.00
Out of stock
The 4.0” flexible display is an active-matrix EPD with Epson S1D13541 EPD controller and drivers supporting 400 x 240 pixels.
This display is particularly suitable for smart cards, wearables and labels.
| Resolution | 400 x 240 |
|---|---|
| Active area | 88.0 x 52.8 mm (4.0″ diagonal) |
| Pixel density | 115 ppi |
| Bendability | typical 50 mm radius (except chip area) |
| Gray Levels | up to 16 |
| Refresh rate | < 900 ms (4 gray-level) – faster for mono updates |
| Surface | anti-glare / UV protection /hard-coat 2H |
| Weight | 4.1 g |
| Thickness | 650 µm |
| EPD controller | Epson S1D13541 |
| Operating conditions | 0°C to 40°C, 15 %rH to 85 %rH |
| Storage conditions | -25°C to 50°C, 15 %rH to 85 %rH |
